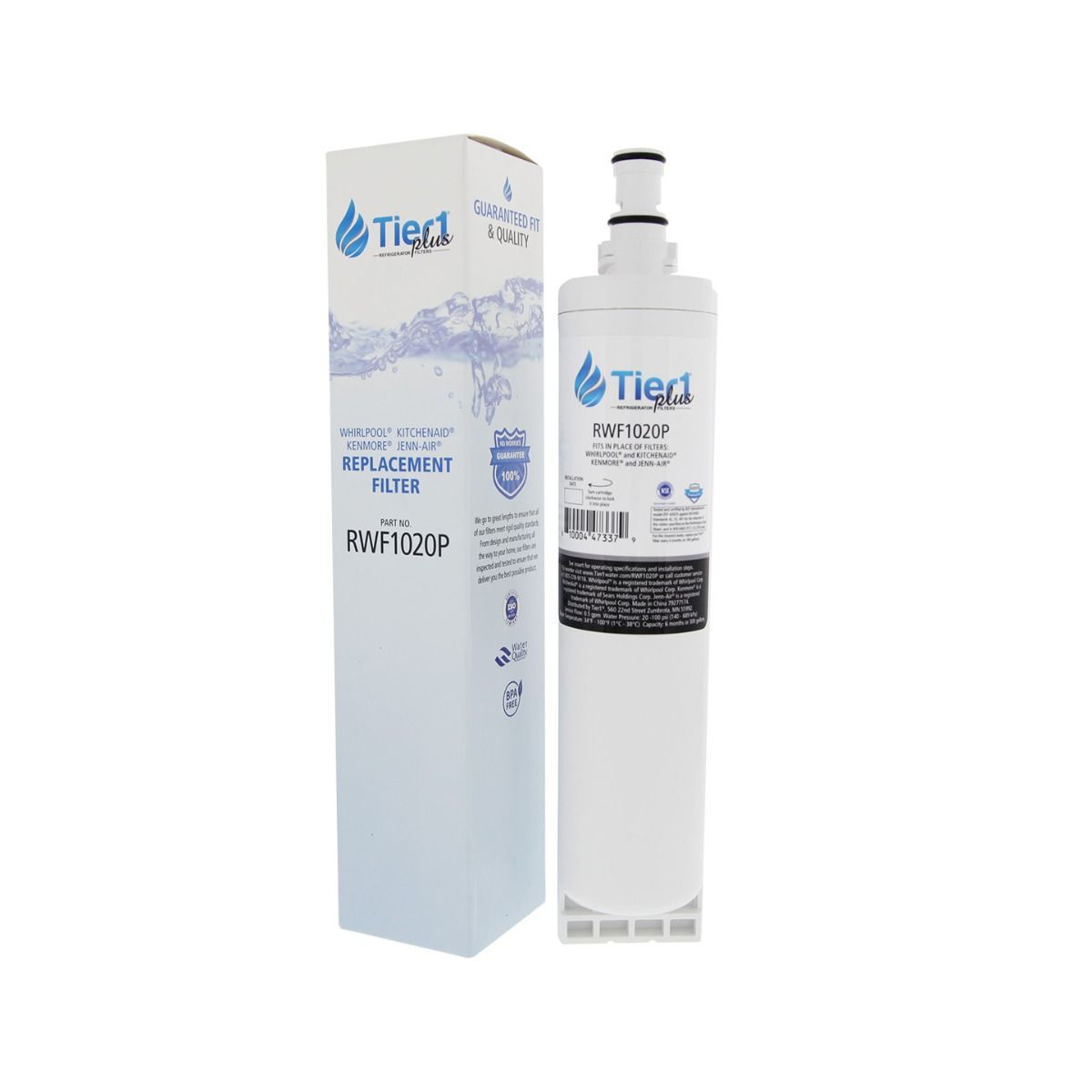

EDR5RXD1 EveryDrop 4396508/4396510 Whirlpool Comparable Lead and Mercury Reducing Refrigerator Water Filter By Tier1 Plus

Warranty Info

Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

TIER1-RWF1020P

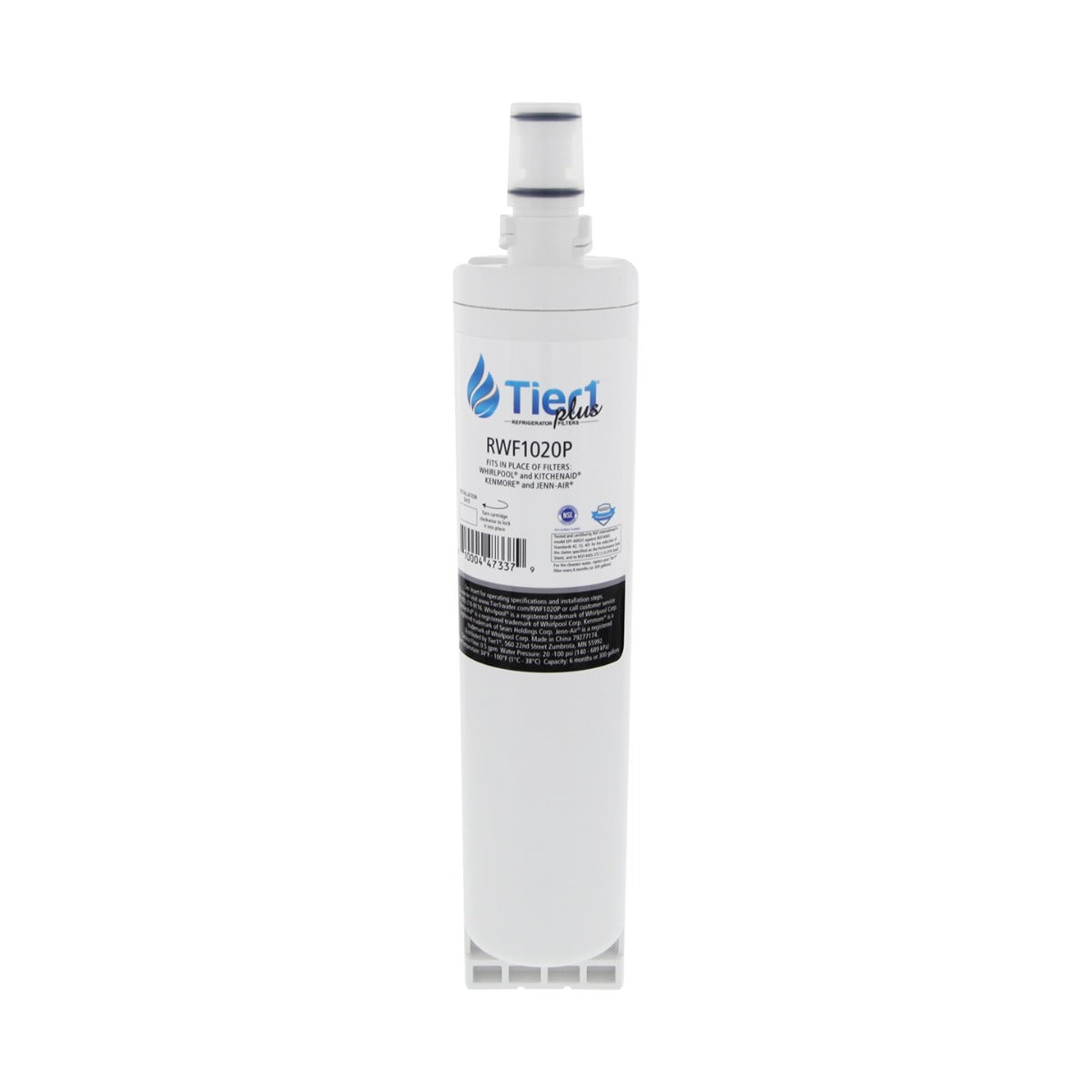

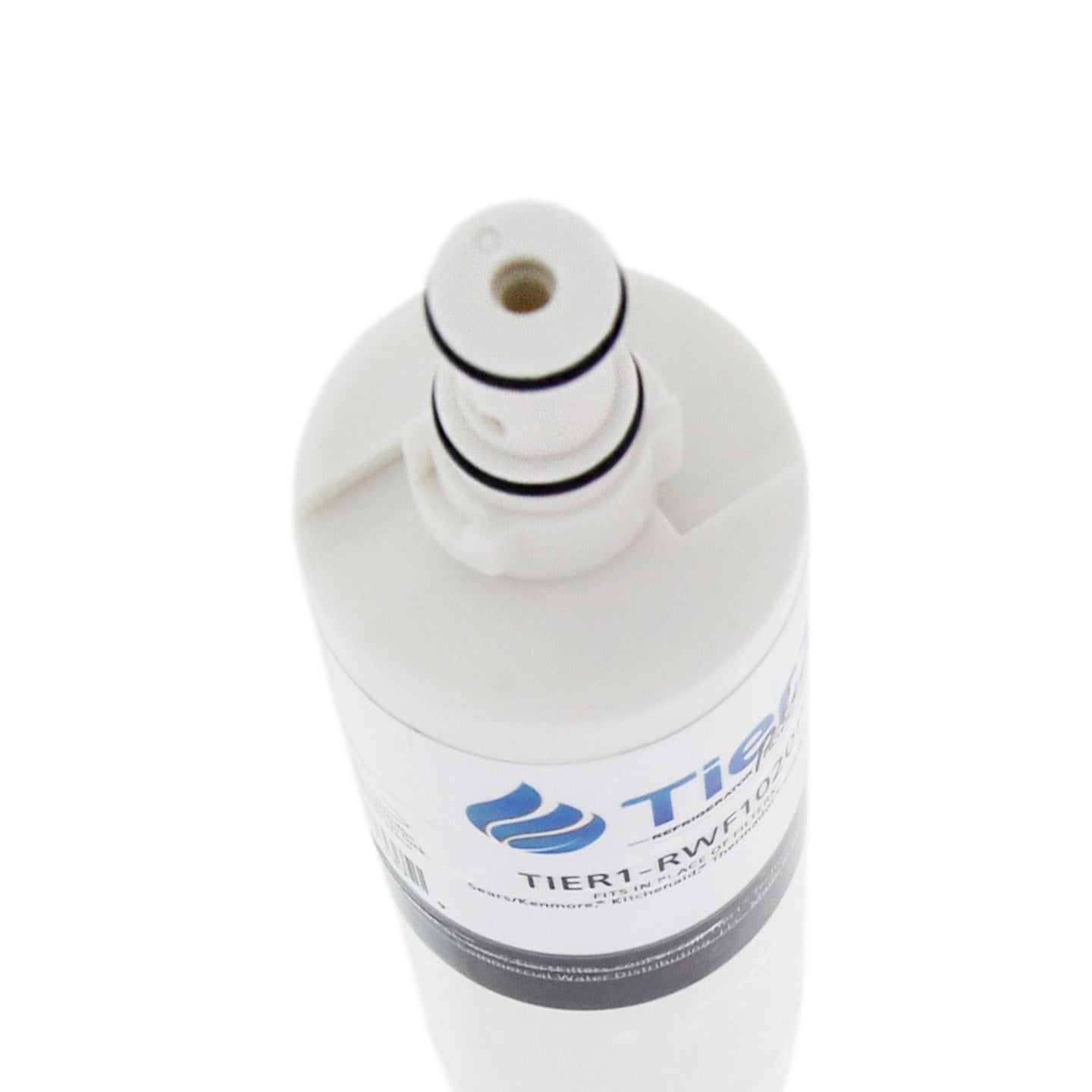

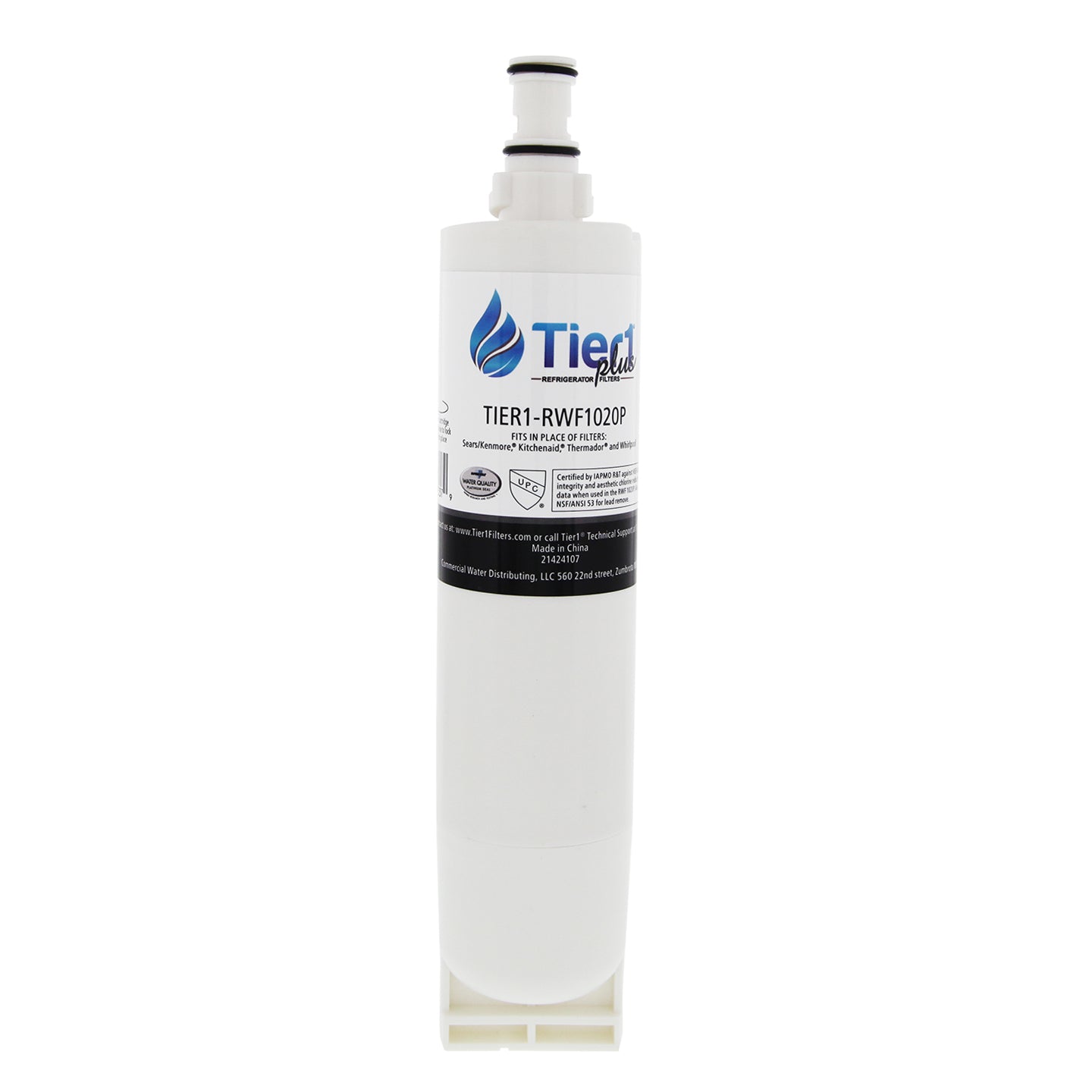

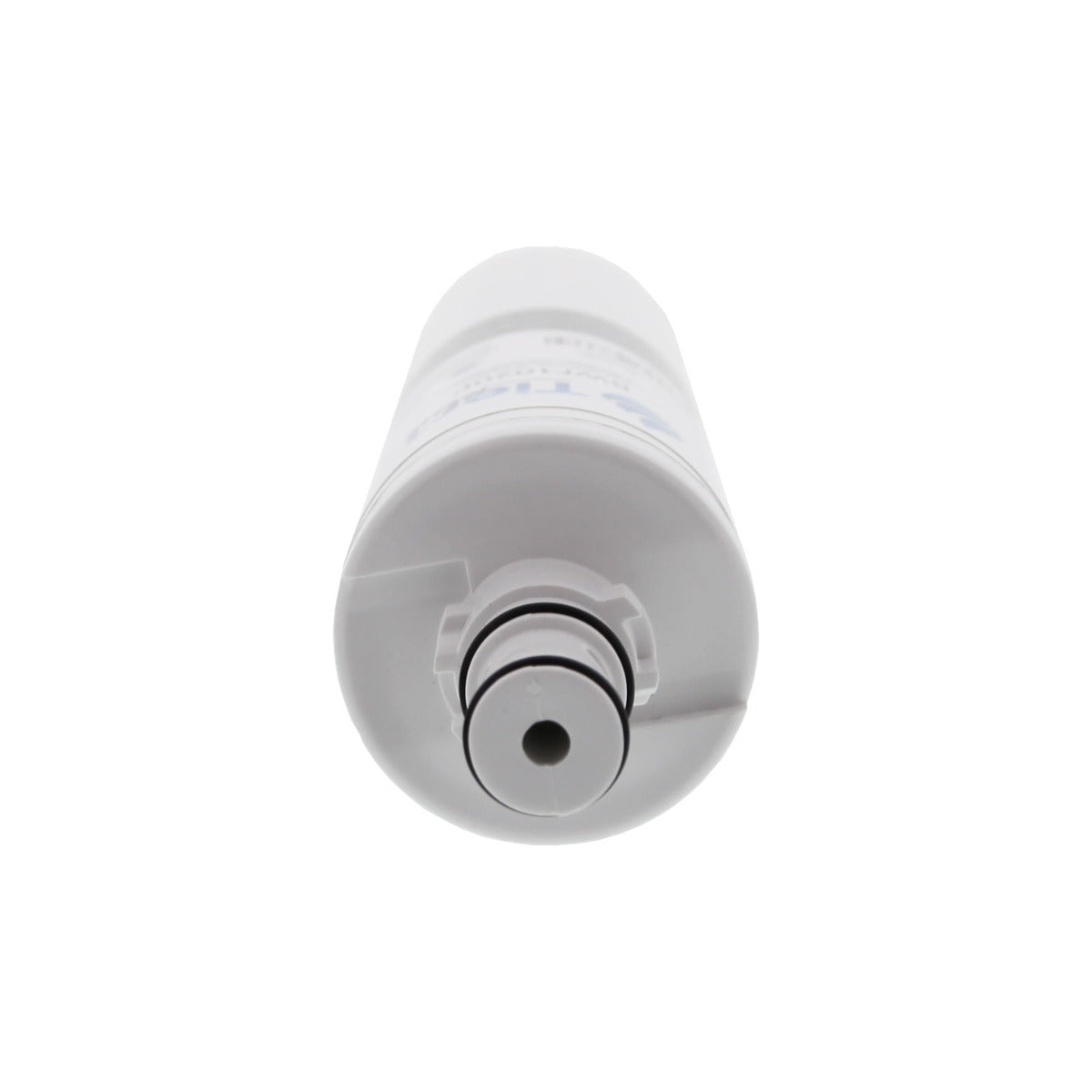

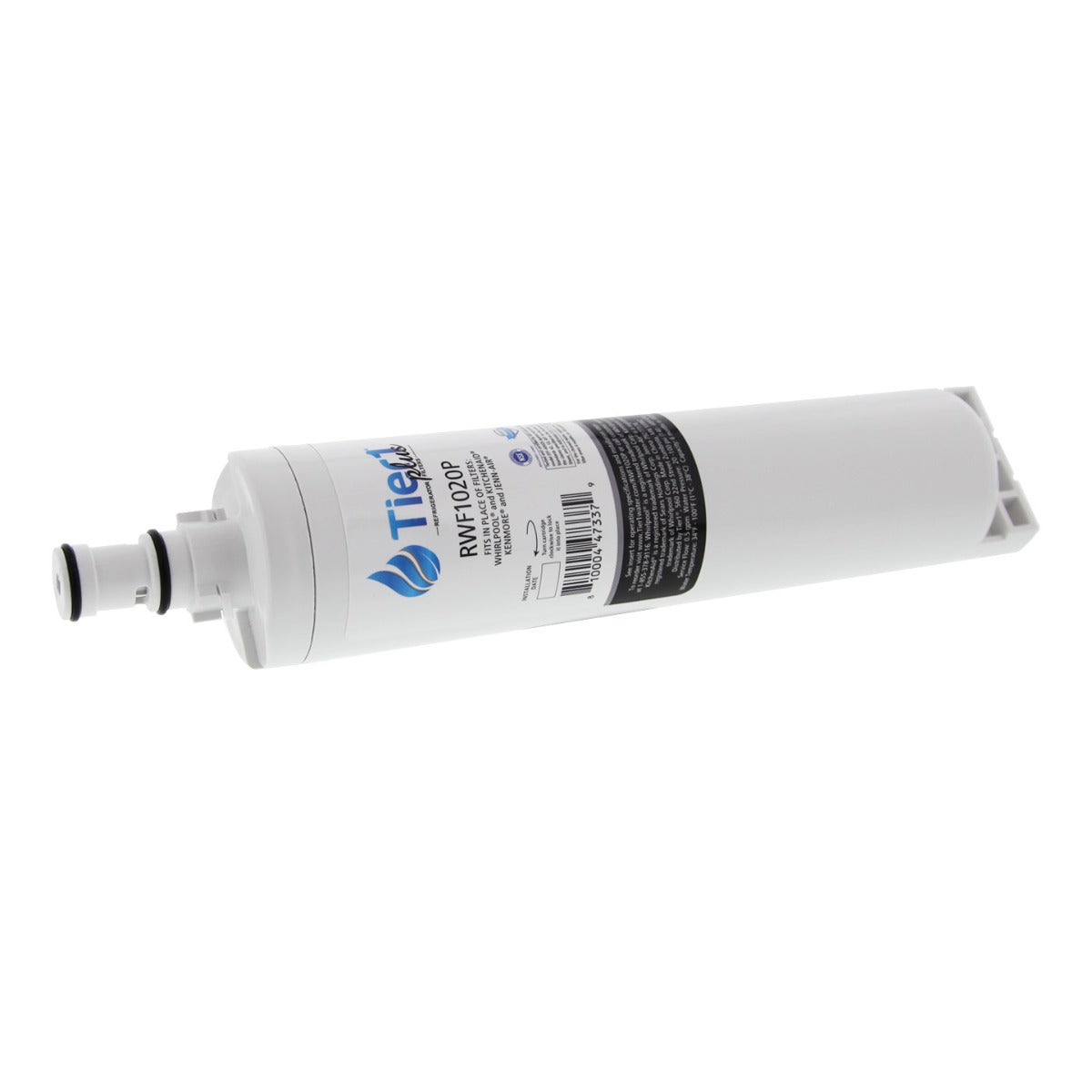

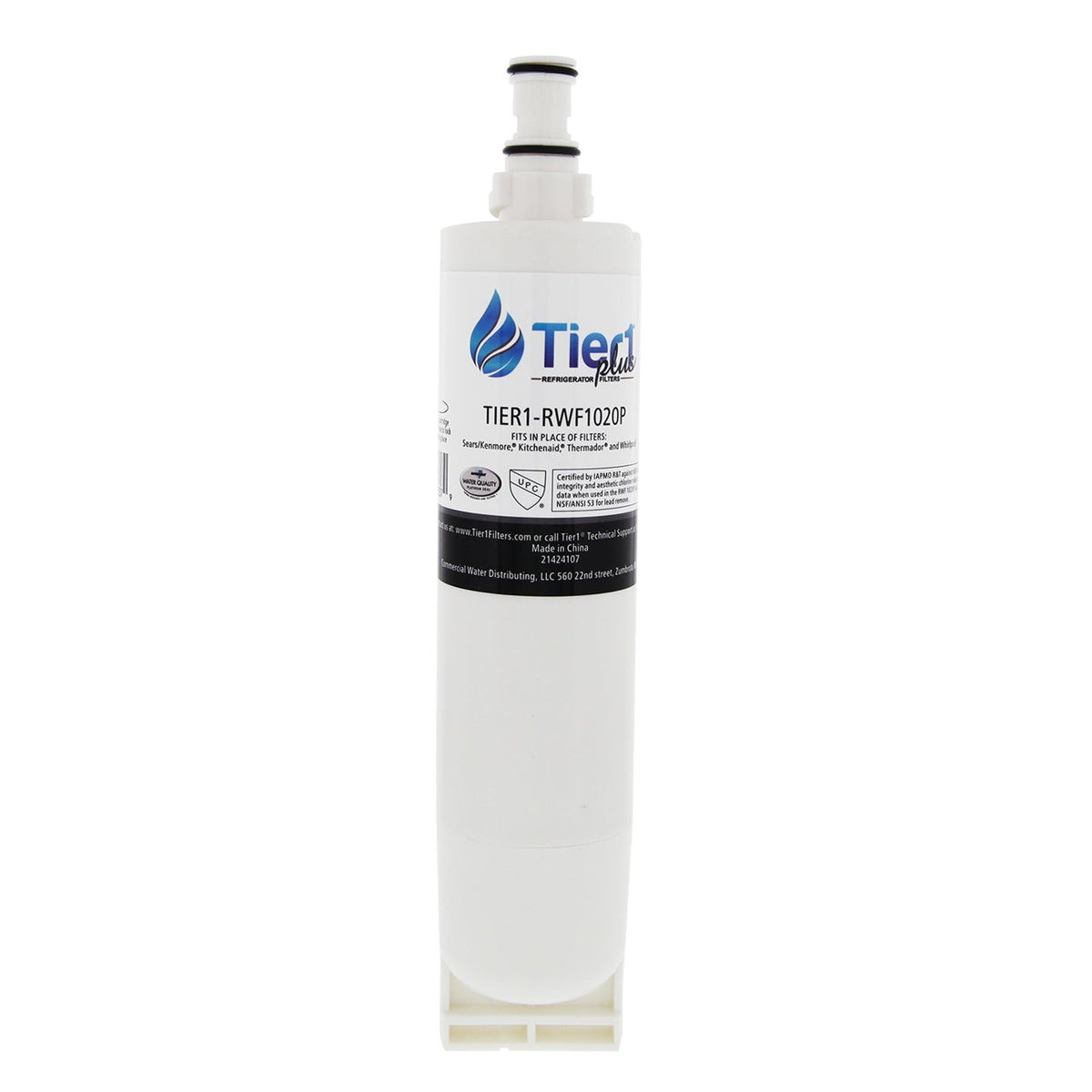

EDR5RXD1 EveryDrop 4396508/4396510 Whirlpool Comparable Lead and Mercury Reducing Refrigerator Water Filter By Tier1 Plus

Name: EDR5RXD1 EveryDrop 4396508/4396510 Whirlpool Comparable Lead and Mercury Reducing Refrigerator Water Filter By Tier1 Plus
Brand: Tier1 Plus
SKU: TIER1-RWF1020P
Price: 27.29 USD
Availability: InStock

High Stock (59)

.price-ui--loading { display: block !important; opacity: 1 !important; }

$27.29 - $144.09

Built for side-by-side refrigerators from Whirlpool, KitchenAid and Kenmore that use a quarter-turn filter located in the bottom grille

Price Per Item

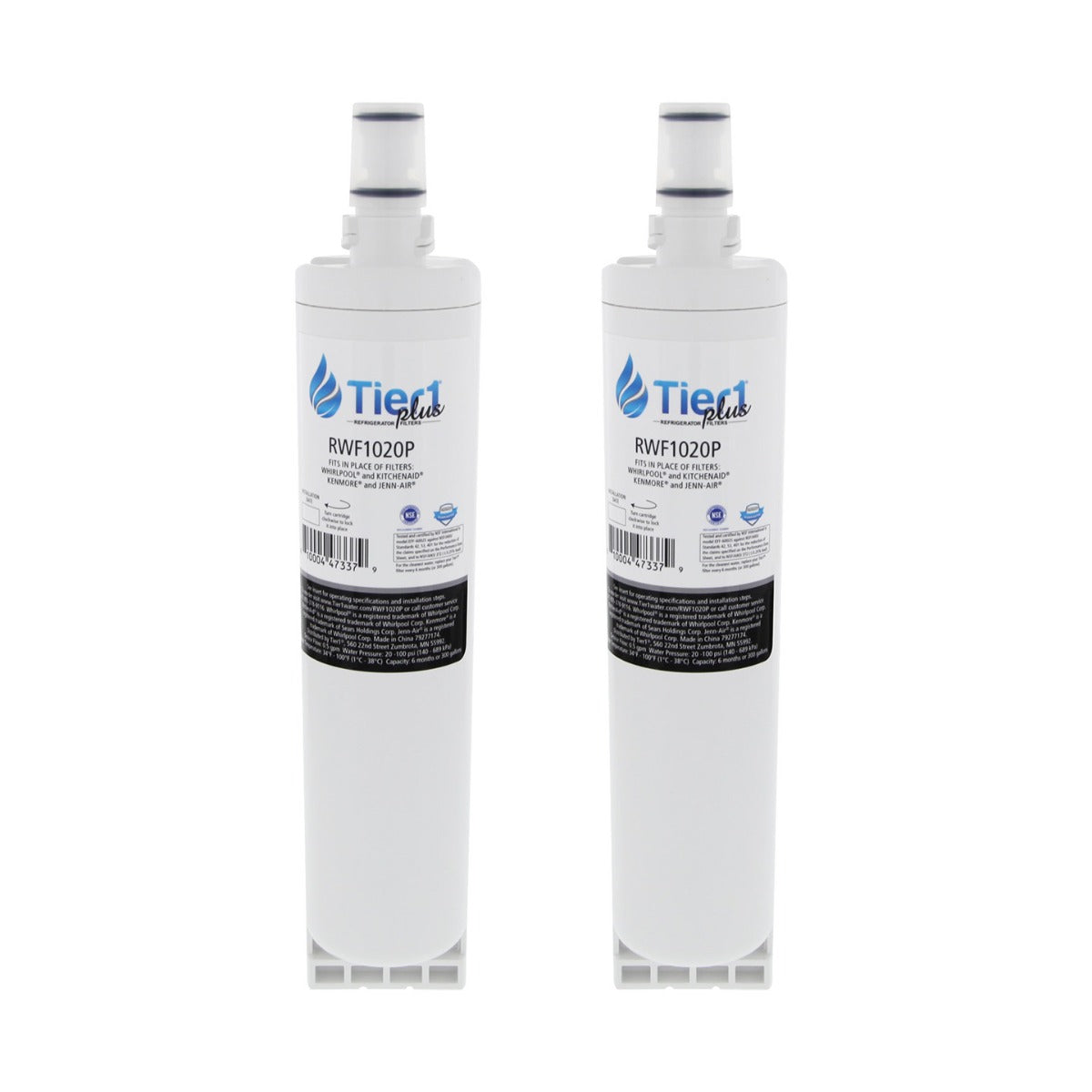

2 PACK	$26.47
3 PACK	$25.65

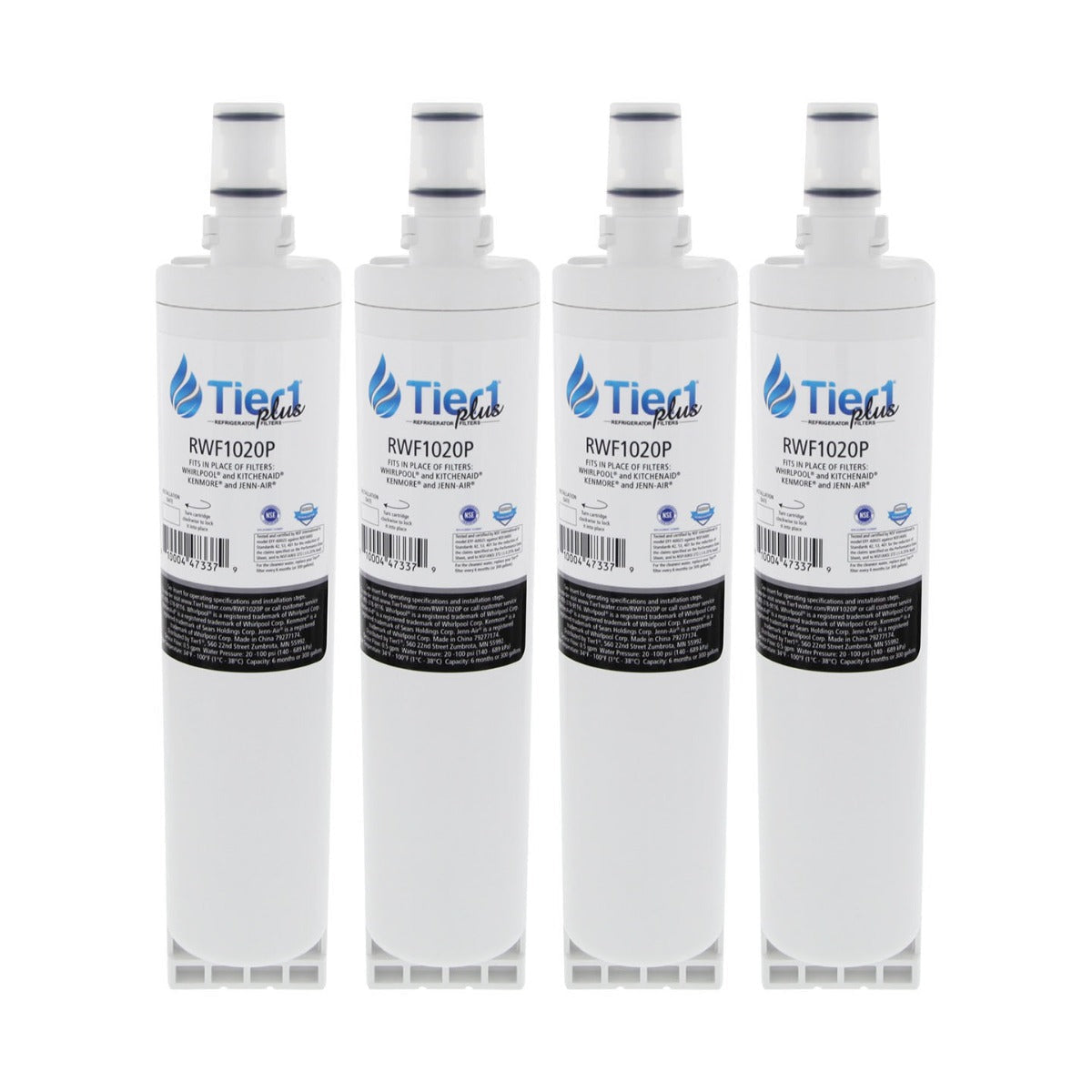

4 PACK	$24.84

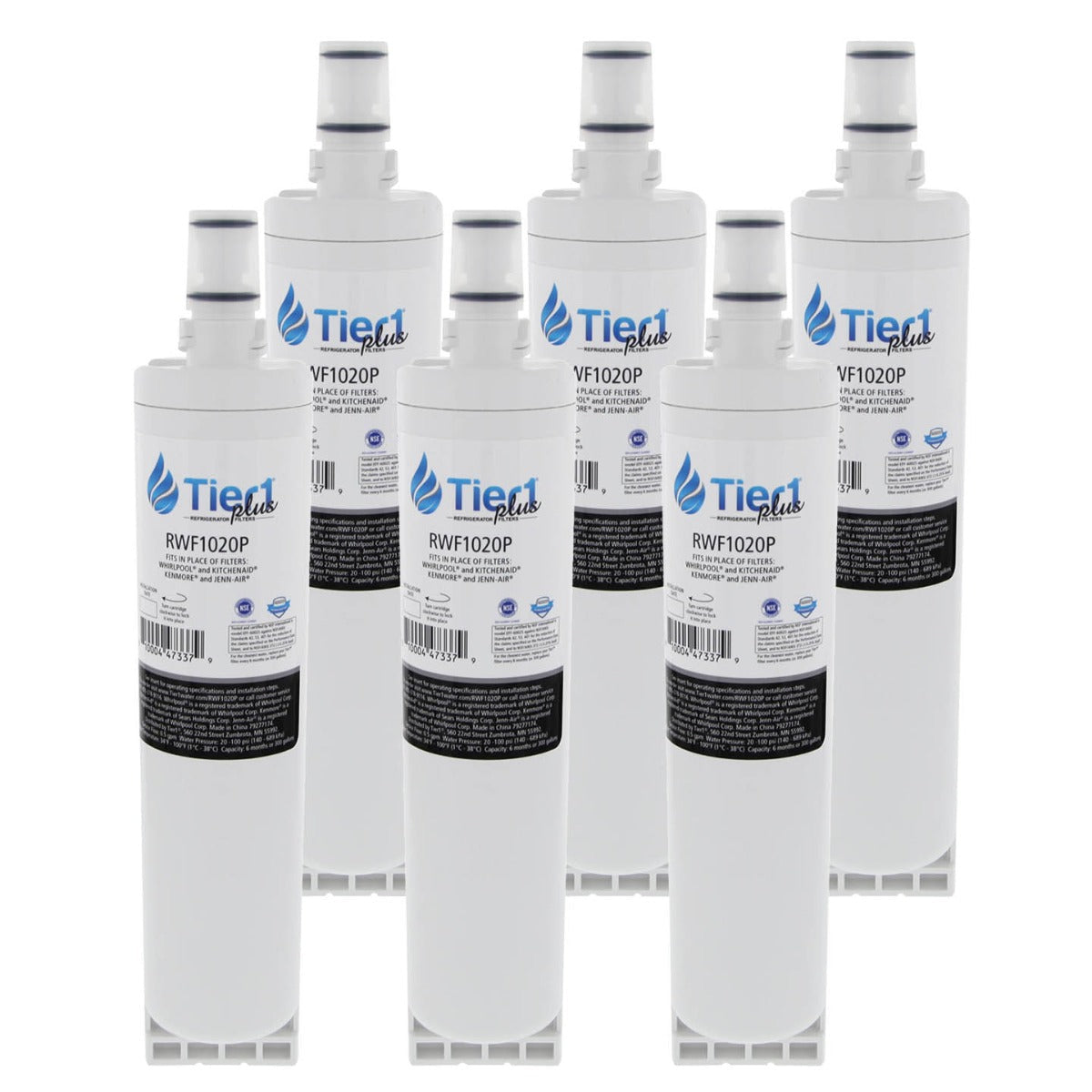

6 PACK	$24.02

Choose a Pack Size:

Single

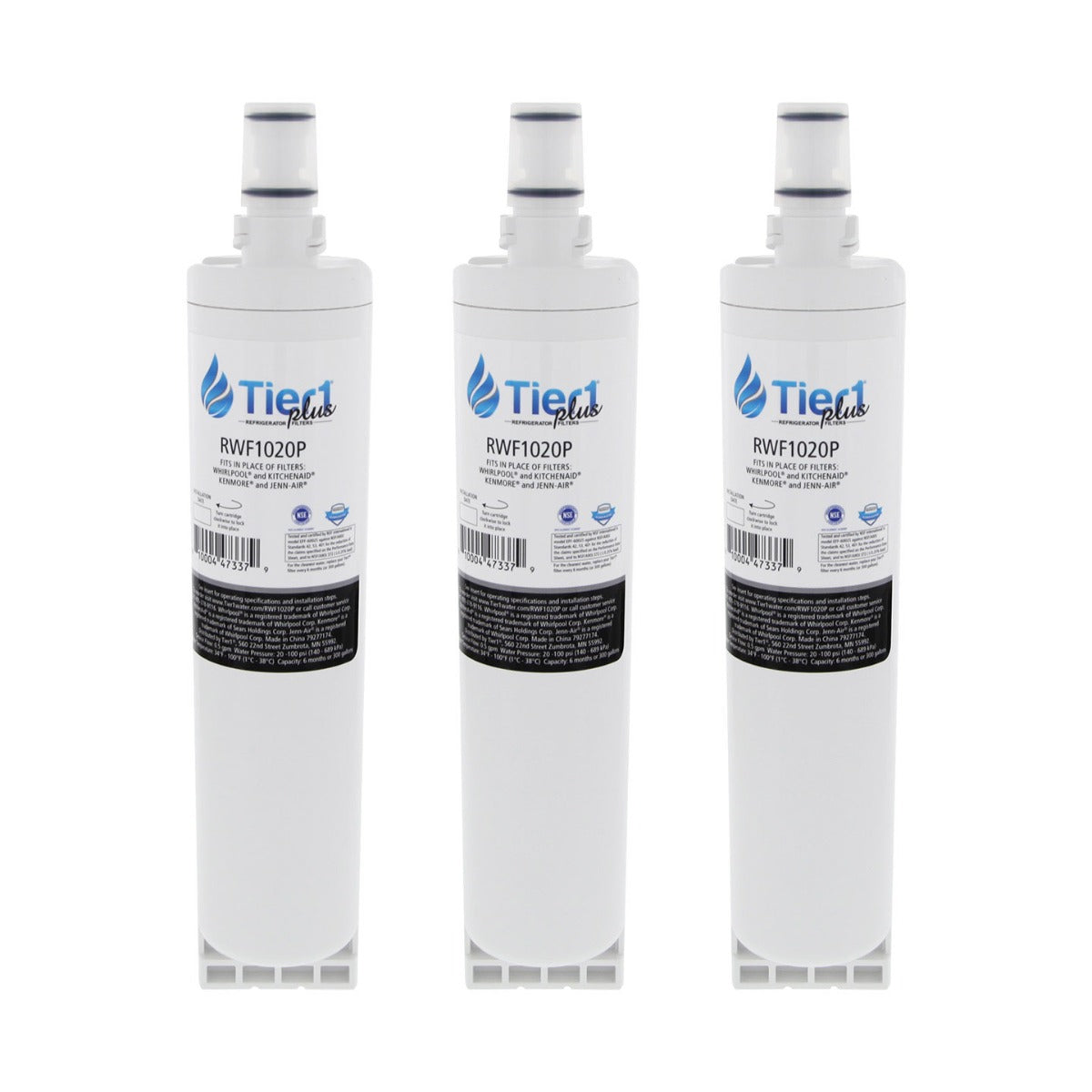

2 PACK

3 PACK

4 PACK

6 PACK

One time purchase

Select Auto-Ship and Save 10%

Certified to reduce 99.6% of Lead, 92.2% of Mercury, 99.99% of Cysts, 96.6% of Benzene, 98.4% of Carbofuran, 96.6% of Endrin
Certified to reduce 97% of chlorine, taste and odor
Manufactured using lead-free material
Delivers clean, great-tasting water for up to six months

Features & Specs

Package Qty: 1

Manufacturer: Tier1 Plus

Manufacturer's Id: RWF1020P

UPC: 810004473379

Actual Size (in): 10 inches (length) x 1-7/8 inches (outside diameter)

Media: Coconut Shell Carbon Block

Primary Filter Media: Activated Carbon Block

Operating Pressure (psi): 30 - 120

Operating Temperature (°F): 34 - 100

Operating Temperature (°C): Jan-38

Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

Brand: Tier1 Plus

Length (in): 10 in

Outside Diameter (in): 1.88 in

Country of Origin: China

Micron Rating Nominal: 0.5

Flow Rate (gpm): 0.5

Instructions

Note: Filter must be pushed firmly into receiver and turned until filter is locked in place. If filter is not locked correctly, water will not flow.
Shut off the main water supply valve to the refrigerator
Remove old filter by turning a quarter turn counter-clockwise, then pull old filter straight out.
Remove cartridge grille cap by sliding it off the end of the old cartridge, then slide it onto the new filter.
With new cartridge cap in the vertical position, insert the new filter into the base grille.
Rotate the cap clockwise a quarter turn until it is horizontal.
Turn on the main water supply valve to the refrigerator.
Flush new filter for 1 1/2 gallons (approximately 3 minutes) and discard the ice production of the first 24 hours after switching on the icemaker.
On models with replacement indicator light, press and hold the RESET WATER FILTER PAD on the dispenser for three seconds.

Reset Instructions

Press the light switch (the one that the refrigerator door presses every time you close the door) 5 times within 10 seconds or if the fridge has a filter button, press and hold it for 5-10 seconds

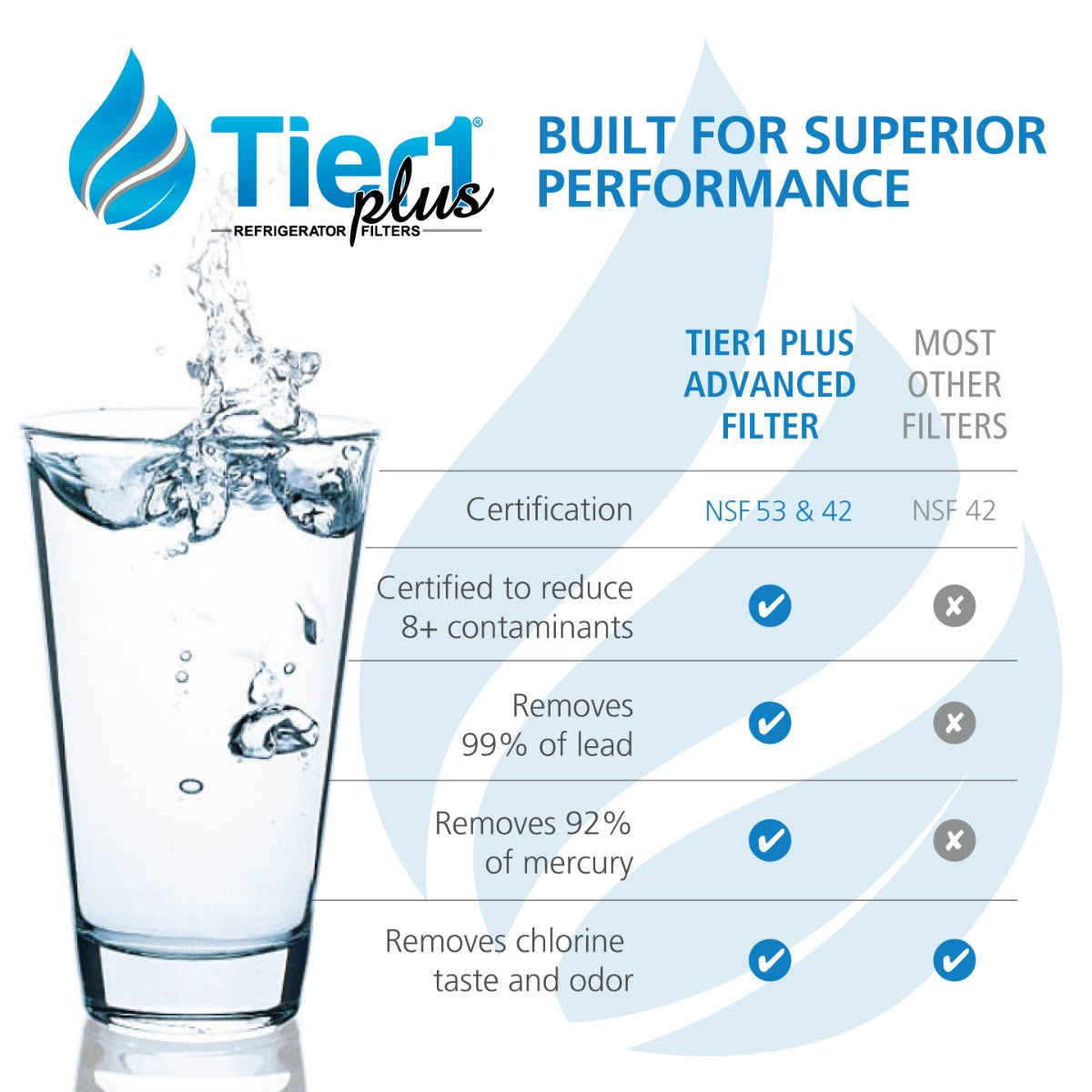

Certifications

NSF/ANSI Standard 372

NSF/ANSI Standard 42

NSF/ANSI Standard 53

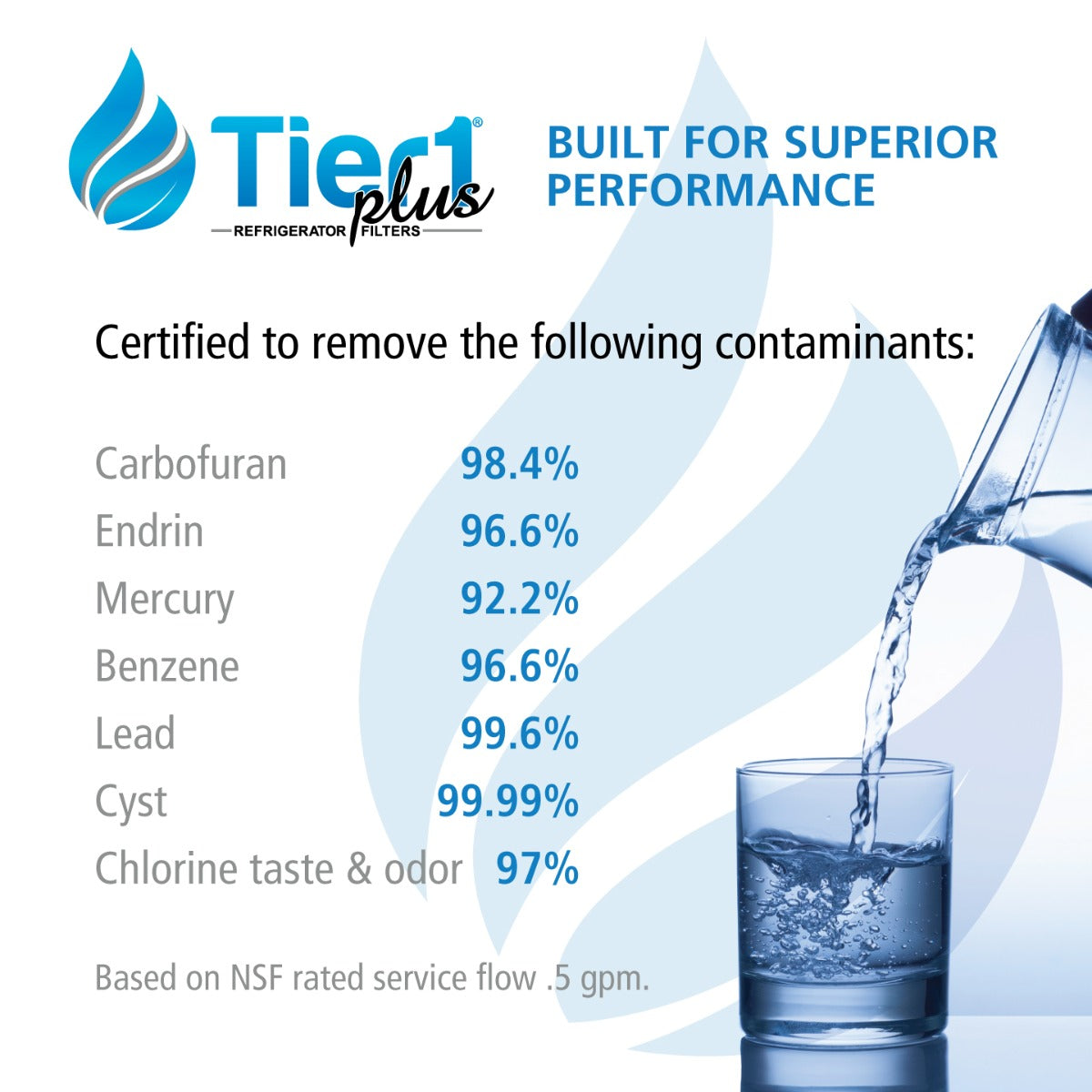

Contaminants Reduced

Benzene

Carbofuran

Chlorine Taste & Odor

Cysts

Endrin

Lead

Mercury

Rust and Corrosion

Sand

Sediment

Silt

Turbidity

Filter Life

Filter Life (gallons): 300

Filter Life (months): 6 months

Warranty Info

Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Details

The EDR5RXD1 EveryDrop 4396508/4396510 Whirlpool comparable lead reducing refrigerator water filter by Tier1 Plus is built for performance. Tier1 Plus refrigerator filters use eco-friendly, advanced NSF 53 certified carbon to reduce lead, mercury, cysts and more for up to six months. Tier1 Plus refrigerator filters are backed by an unconditional guarantee for the life of the product. Certified to NSF 53 for the reduction of health-related contaminants, Certified to NSF 42 for the reduction of chlorine, and Certified to NSF 372 for lead-free material. Manufactured to reducing impurities, not beneficial minerals, Tier1 Plus filters are the smart choice to Protect Every Drop.

Why is my Refrigerator Filter Important? Your refrigerator's water and ice dispenser is more than a quick and efficient way to get a cold drink of water. When fitted with a high-quality, certified refrigerator water filter, your refrigerator becomes a source of clean, pure water that will keep you and your family healthy and hydrated. Regular replacement of the filter is critical to maintaining their effectiveness and reducing bacterial contamination. An overused or out-of-date filter can become dangerous because the filter will no longer trap contaminants, allowing them to leach back into your water.

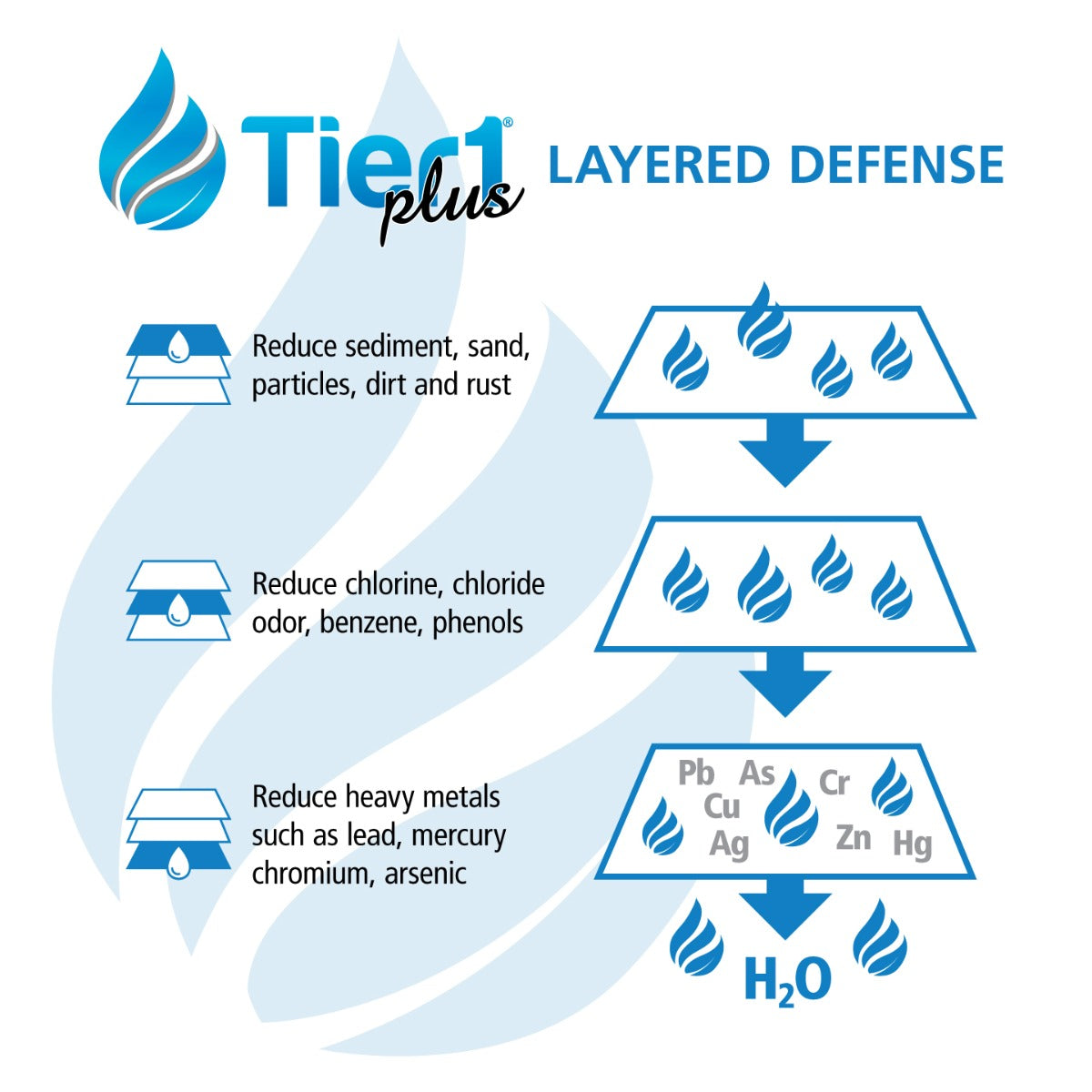

Contaminants Stop Here! Tier1 Plus refrigerator filters reduce a variety of contaminants that can cause illnesses, including volatile organic compounds (VOCs), such as lead, mercury, cysts, carbofuran, endrin, benzene and chlorine taste and odor. All Tier1 Plus refrigerator filters are Certified to NSF/ANSI 372, ensuring each filter is built with lead-free materials. Refrigerator water filtration is as much about what the filter reduces as what it does not remove, Tier1 Plus refrigerator filters are manufactured to not remove beneficial minerals.

Certified Protection NSF International developed home water treatment standards to provide independent certification regarding a product's safety and effectiveness. Tier1 Plus refrigerator filters have been awarded three certifications, covering a wide range of health effects and aesthetic contaminants. Health effects are regulated by the U.S. Environmental Protection Agency (EPA) and Health Canada.

Frequently Asked Questions

Which refrigerator brands and part numbers is the Tier1 Plus RWF1020P compatible with?

The Tier1 Plus EDR5RXD1 is a direct replacement for Whirlpool EDR5RXD1, Filter 5, 4396508, 4396510, PUR W10186668, NLC240V, and Kenmore 46-9010. It is designed to fit Whirlpool, Kenmore, KitchenAid, Maytag, Amana, and Jenn-Air side-by-side refrigerators that feature an in-grille push-button filter housing. Cross-reference your existing filter part number before purchasing to confirm compatibility.

How fine is the Tier1 Plus EDR5RXD1 filtration, and when should it be replaced?

The Tier1 Plus EDR5RXD1 is built around a 0.5-micron absolute coconut shell carbon block, which is substantially finer than a typical 5-micron filter. Replacement is recommended at 300 gallons or every 6 months, whichever threshold is hit first. The 0.5-micron rating delivers greater contaminant reduction capability than both the standard Tier1 and OEM Whirlpool Filter 5, without sacrificing flow rate.

What contaminants is the Tier1 Plus EDR5RXD1 designed to reduce?

This is not a basic aesthetic-only filter. The Tier1 Plus EDR5RXD1 is designed to reduce chlorine taste and odor, sediment, rust, cysts, lead, mercury, asbestos, VOCs, pharmaceuticals, pesticides, herbicides, and industrial chemicals. Compared to the standard Whirlpool 4396508/4396510 - which focuses mainly on chlorine and particulates - this filter offers substantially broader contaminant coverage.

Which NSF/ANSI standards is the Tier1 Plus EDR5RXD1 tested and certified to?

The Tier1 Plus EDR5RXD1 holds certifications to NSF/ANSI Standard 42 (reduction of chlorine, taste, and odor), Standard 53 (reduction of health-related contaminants such as lead, cysts, and VOCs), and Standard 372 (lead-free materials). All three certifications are backed by independent third-party testing.

How is the Tier1 Plus EDR5RXD1 installed, and what comes after?

Installation requires no tools. Press the eject button on the bottom grille filter housing to remove the old filter. Insert the Tier1 Plus EDR5RXD1 with the arrow facing upward, then rotate until it clicks securely into position. Run 3 gallons of water through the dispenser to clear air and carbon fines from the new filter. Press and hold the refrigerator's filter reset button for 3–5 seconds to turn off the indicator light.

What should I do if the filter goes in but won't lock?

Certain refrigerator models are manufactured with tighter tolerances, which can make full filter seating more difficult. Begin by examining the o-rings to confirm they are properly seated inside their groove and not tilted or sitting proud of it. Retry installation with deliberate inward pressure before twisting into the locked position. Avoid forcing the connection. If the filter still will not lock, reach out to the support team with your refrigerator model number so they can determine whether a known fitment issue exists for that model.

Is slow water flow from a new filter a sign something is wrong?

Slow flow on a new filter is not necessarily a sign of a defect. Common causes include air trapped in the filter after installation, minor internal clogging that typically clears after dispensing a few gallons, or a filter that has not been fully seated. Revisit the installation steps from the start, ensure the filter is prepped correctly, and confirm it is completely locked into the housing.

My replacement filter has different plastic tabs than the original - is that a problem?

Tab and connector designs can vary slightly from one manufacturer to another. A visual difference alone does not confirm the filter is incompatible. Try fitting the filter into the housing without forcing it, and observe whether it seats and locks as expected. If it does not seat correctly, contact the vendor with the specifics so they can advise further.

Comparable Part Number

TIER1-RWF1020P is comparable with the following part number(s)

04609010000
04609908000
111524
111624
2186444
2200203
2203220
2203221
2203980
223764
2255518
2255519
2255520
2255709
2305766
2305767
2305768
28YR61
28YP99
4392857
4392857R
4392922
4396163
4396164
4396508
4396508P
4396508T
4396509
4396509P
4396510
4396510P
4396510T
4396547
4396548
4396562
4396563
4396918
46-9010
46-9902
46-9908
4609010000
4609902000
4609908000
46195023294
461951401681
469008
469010
469902
469908
491849
643898
6508
8212491
8212652
9010
9010P
9902
9902P
9908
9908P
AFF5
AP3182816
AP3182817
AP3672633
EAP879461
EAP896755
EarthSmart EW-1
ED5NHAXNT01
EFF 6002
EFF 6002A
EFF-6002
EFF-6002A
ER4396508
ER4396510
FILTER 5
FILTER5
KSZ6T9500
L400
L400V
L500
LC400
LC400V
NL240
NL240V
NL300
NLC240
NLC240V
NLC250
NLC400V
NYTTIG-WFL-100
PD00002386
PD00002567
PL400V
PNL240V
PS879461
EFF-6015A
SGF-W01
WF-LC400
WF-LC400V
WF-NLC240
WF-NLC240V
WF-NLC250
WFLC400
WFNLC240
WFNLC240V
WFNLC250
WSW-2
0460901000
04609902000
22033980
4396501
46.9085
469085
480181700086
723987008028
821491
9085
APF0400
AQF-4396508
AQUACLEAR500
BCF85
CLCH100
CW-4396508
CW-W2
EW-1
FF21200
GRE1005
MF5
NJW-04
NMS05
OPFW-RF300
PH21200
PL-600
PP1000
PUR-00
QTSS
R-9010
RB-W1
RFC0500A
RWF0500A
RWF1020
SBS002
SGF-W80
SW-W2
W10141392
W10168990
W10186668
WD-4396508
WF-285
WF-300BR
WF-L400
WF-L400V
WF-L500
WF-LC00V
WF-NL240
WF-NL240V
WF-NL300
WF285
WFL400
WFL400V
WFL500
WFLC400V
WFNL240
WFNL240V
WFNL300
WPRF-100
WSW-1
PWF-L400V
PWF-NL240V
EDR5RXD1
2186444
W-2-2
WFBRFWH1
EFF6002
EFF6002A
PS879461

Compatible With

TIER1-RWF1020P fits the following model number(s)

ED25QFXHW00
ED25RFXFW00
ED25RFXFW01
ED2FHEXNS00
ED2GHEXNQ04
ED2GHGXMQ00
ED2PHEXNQ00
ED2SHAXMB10
ED2SHAXMQ10
ED5FHEXLQ01
ED5FHEXNB00
ED5FHEXNQ00
ED5FHEXNS00
ED5FHGXKQ00
ED5FHGXKQ02
ED5FTGXKQ01
ED5GHEXNB01
ED5GHEXNL00
ED5GHEXNQ01
ED5GHGXMQ00
ED5GTGXNQ00
ED5LHAXMQ10
ED5PHAXMB00
ED5PHEXNL00
ED5RHAXNQ00
ED5RHEXNL00
ED5RHEXNL03
ED5SHAXMB10
ED5SHAXMQ10
ED5THAXMS00
ED5VHGXMB10
ED5VHGXMB11
ED5VHGXML10
ED5VHGXML13
ED5VHGXMQ00
ED5VHGXMQ10
GC5SHGXLS00
GC5SHGXLS01
GD25DFXFW01
GD25DFXFW02
GD25DIXHW02
GD5LHGXKB01
GD5NHAXMB00
GD5PHAXMS10
GD5RHAXNB00
GD5RHAXNQ00
GD5RHAXNT00
GD5SHAXLB00
GD5SHAXLQ01
GD5SHAXLQ02
GD5SHAXNS00
GD5THGXKS03
GD5YHAXNL00
GD5YHAXNL03
GS2SHEXNS00
GS5SHAXNB00
GS5SHAXNB01
GS5SHAXNL00
GS5SHGXKS00
GS6SHAXKS01
GS6SHAXLS03
GS6SHAXMB00
GS6SHAXMQ00
GS6SHAXMS00
GS6SHEXML00
GS6SHEXMS00
GS6SHEXNB00
GS6SHEXNL00
GS6SHEXNS00
GS6SHEXNS02
KBRC36FMS01
KSBS25FJBL01
KSCS25FJSS01
KSCS25FKSS00
KSCS25FKSS01
KSCS25FKSS02
KSRA25CNSS00
KSRA25FKSS00
KSRA25ILSS02
KSRA25ILSS03
KSRA25ILSS13
KSRB25FHSS01
KSRB25FHSS02
KSRB25FHSS03
KSRB25FKSS00
KSRB25FKSS01
KSRB25FKSS03
KSRG25FKSS03
KSRG25FKSS04
KSRG25FKSS05
KSRG25FKSS15
KSRG25FKSS16
KSRG25FKSS18
KSRG25FKST17
KSRJ25CNST00
KSRP22FNSS00
KSRP25FNBL00
KSRP25FNSS00
KSRS25CNSS00
KSRS25FJBL01
KSRS25FJBL02
KSRS25FJBT01
KSRS25FJBT02
KSRS25FJWH01
KSRS25FJWH02
KSRS25ILSS02
KSRS25ILSS03
KSRS25ILSS13
KSRS25INSS00
KSRS25IHSS02
KSRS25IHSS03
KSRS25IHSS13
KSRS25IHSS15
KSRS25IKSS00
KSRS25IKSS01
KSRS25IKSS02
KSRS25IKSS03
KSRS25IKSS13
KSRS25ILBT00
KSRS25ILBT02
KSRS25ILBT03
KSRS25ILBT13
KSRS25ILWH00
KSRS25ILWH02
KSRS25ILWH03
KSRS25ILWH13
KSRS25INBL00
KSRS25INBL01
KSRS25INBL02
KSRS25INBL03
KSRS25INBT00
KSRS25INBT01
KSRS25INBT02
KSRS25INBT03
KSRS25INWH00
KSRS25INWH01
KSRS25INWH02
KSRS25INWH03
KSRS25IHBL00
KSRS25IHBL02
KSRS25IHBL03
KSRS25IHBT00
KSRS25IHBT02
KSRS25IHBT03
KSRS25IHWH00
KSRS25IHWH02
KSRS25IHWH03
KSRS25IKBL00
KSRS25IKBL01
KSRS25IKBL02
KSRS25IKBL03
KSRS25IKBT00
KSRS25IKBT01
KSRS25IKBT02
KSRS25IKBT03
KSRS25IKWH00
KSRS25IKWH01
KSRS25IKWH02
KSRS25IKWH03
KSRS25IHMS00
KSRS25IKMS00
KSRS27IHBT02
KSRS27IHBT03
KSRS27IHMS00
KSRS27IKBL02
KSRS27IKBT02
KSRS27IKWH02
KSRS27IHWH00
KSRS27IHWH02
KSRS27IKMS00
KSSC36FKS00
KSSC42FJS00
KSSC42FKS00
KSSC42FKS01
KSSC42FKS02
KSSC42FKS03
KSSC42FKS04
KSSC42FKS05
KSSC42FKS06
KSSC42FKS07
KSSC42FKS08
KSSC42FKS09
KSSC42FKS10
KSSC42FKS11
KSSC42FKS12
KSSC42FKS13
KSSC42FKS14
KSSC42FKS15
KSSC42FKS16
KSSC42FKS17
KSSC42FKS18
KSSC42FKS19
KSSC42FKS20
KSSC42FKS21
KSSC42FKS22
KSSC42FKS23
KSSC42FKS24
KSSC42FKS25
KSSC42FKS26
KSSC42FKS27
KSSC42FKS28
KSSC42FKS29
KSSC42FKS30
KSSC42FKS31
KSSC42FKS32
KSSC42FKS33
KSSC42FKS34
KSSC42FKS35
KSSC42FKS36
KSSC42FKS37
KSSC42FKS38
KSSC42FKS39
KSSC42FKS40
KSSC42FKS41
KSSC42FKS42
KSSC42FKS43
KSSC42FKS44
KSSC42FKS45
KSSC42FKS46
KSSC42FKS47
KSSC42FKS48
KSSC42FKS49
KSSC42FKS50
KSSC42FKS51
KSSC42FKS52
KSSC42FKS53
KSSC42FKS54
KSSC42FKS55
KSSC42FKS56
KSSC42FKS57
KSSC42FKS58
KSSC42FKS59
KSSC42FKS60
KSSC42FKS61
KSSC42FKS62
KSSC42FKS63
KSSC42FKS64
KSSC42FKS65
KSSC42FKS66
KSSC42FKS67
KSSC42FKS68
KSSC42FKS69
KSSC42FKS70
KSSC42FKS71
KSSC42FKS72
KSSC42FKS73
KSSC42FKS74
KSSC42FKS75
KSSC42FKS76
KSSC42FKS77
KSSC42FKS78
KSSC42FKS79
KSSC42FKS80
KSSC42FKS81
KSSC42FKS82
KSSC42FKS83
KSSC42FKS84
KSSC42FKS85
KSSC42FKS86
KSSC42FKS87
KSSC42FKS88
KSSC42FKS89
KSSC42FKS90
KSSC42FKS91
KSSC42FKS92
KSSC42FKS93
KSSC42FKS94
KSSC42FKS95
KSSC42FKS96
KSSC42FKS97
KSSC42FKS98
KSSC42FKS99
58582890
3KES0FHGNS00
3XART745GW00
3XART745GW01
3XART745GW02
3XEC5SHGKQ00
3XEC5THGKB00
3XED5SHGKS00
3XED5SHGKS01
3XED5SHGKS02
3XED7SHGKB00
3XED7SHGKB01
3XES0FHGKS00
3XES0FHGKS01
3XES0FHGKS02
3XES0FHGKS03
3XES0FHGNS00
3XES2SHGKQ00
3XES2SHGKQ02
5VES3FHGRS00
5VGS3SHGKQ00
5VGS3SHGKQ01
5VGS3SHGKQ02
5VGS3SHGKQ03
5VGS7SHGKQ00
5VGS7SHGKQ01
5VGS7SHGKT00
5VGS7SHGKT01
5VGS9SHGKQ00
5VGS9SHGKQ01
5VGS9SHGKT00
5VGS9SHGKT01
6GC5THGXKS00
6GD25DCXHS00
6GD25DCXHS01
6GD25DCXHS02
6GD25DCXHS03
6GD25DCXHS04
6GD25DCXHS05
6GD25DCXHS06
6GD25DCXHW00
6GD25DCXHW01
6GD25DCXHW02
6GD25DCXHW03
6GD25DCXHW04
6GD25DCXHW05
6GD25DCXHW06
6GD27DFXFS00
6GD27DFXFS01
6GD27DFXFS02
6GD27DFXS00
6GS5SHGXRS00
7ED5FHEXMS00
7ED5FTGXKT00
7ED5FTGXKT01
7ED5FTGXKT02
7ED5GHGXMQ00
7ED7FHGXKQ00
7ED7FHGXKQ01
7GD22DFXFW00
7GD22DFXFW01
7GD22DFXFW02
7GD22DFXFW03
7GD25DFXFW00
7GD25DFXFW01
7GD25DFXFW02
7GD25SFXHS00
58582890
7GD25SFXHS00

	EDR5RXD1 EveryDrop 4396508/4396510 Whirlpool Comparable Lead and Mercury Reducing Refrigerator Water Filter By Tier1 PlusFrom $27.29	Whirlpool 4396508 and 4396510 are now EveryDrop EDR5RXD1 (Filter 5) Ice and Water Refrigerator FilterFrom $60.82	4396508/4396510 Whirlpool Comparable Refrigerator Water Filter Replacement By Tier1From $14.33	4396508/4396510 Whirlpool Comparable Refrigerator Water Filter Replacement By USWFFrom $21.78
Product Price	$27.29	$60.82	$14.33	$21.78
Product SKU	TIER1-RWF1020P	EDR5RXD1	TIER1-RWF1020	USWF-4020
Filter Life (gallons)	300	200	400	300
Filter Life (months)	6 months	6 months	6 months	6 months
Primary Filter Media	Activated Carbon Block	Activated Carbon Block	Activated Carbon Block	Activated Carbon Block
Warranty Guarantee	Unconditional Product Guarantee for Life of the Product	—	Unconditional Product Guarantee for Life of the Product	—
Certifications	NSF/ANSI Standard 372,NSF/ANSI Standard 42,NSF/ANSI Standard 53	NSF/ANSI Standard 42,NSF/ANSI Standard 53,NSF/ANSI Standard 401	NSF/ANSI Standard 372,NSF/ANSI Standard 42	Independently Tested against NSF/ANSI Standard 42
Country of Manufacture	China	—	—	United States

EDR5RXD1 EveryDrop 4396508/4396510 Whirlpool Comparable Lead and Mercury Reducing Refrigerator Water Filter By Tier1 Plus

Frequently Asked Questions

TIER1-RWF1020P is comparable with the following part number(s)

TIER1-RWF1020P fits the following model number(s)

Customers Also Purchased
