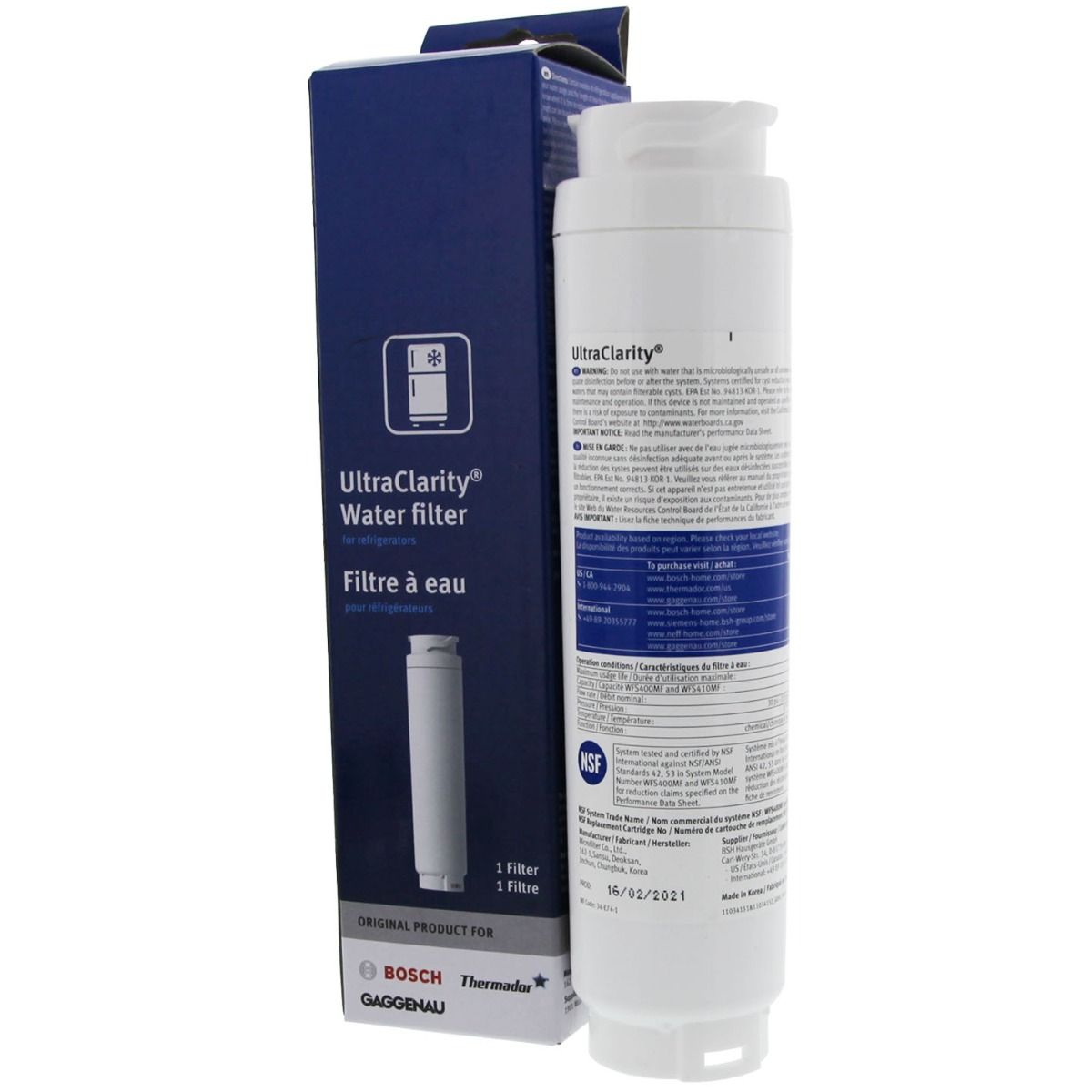

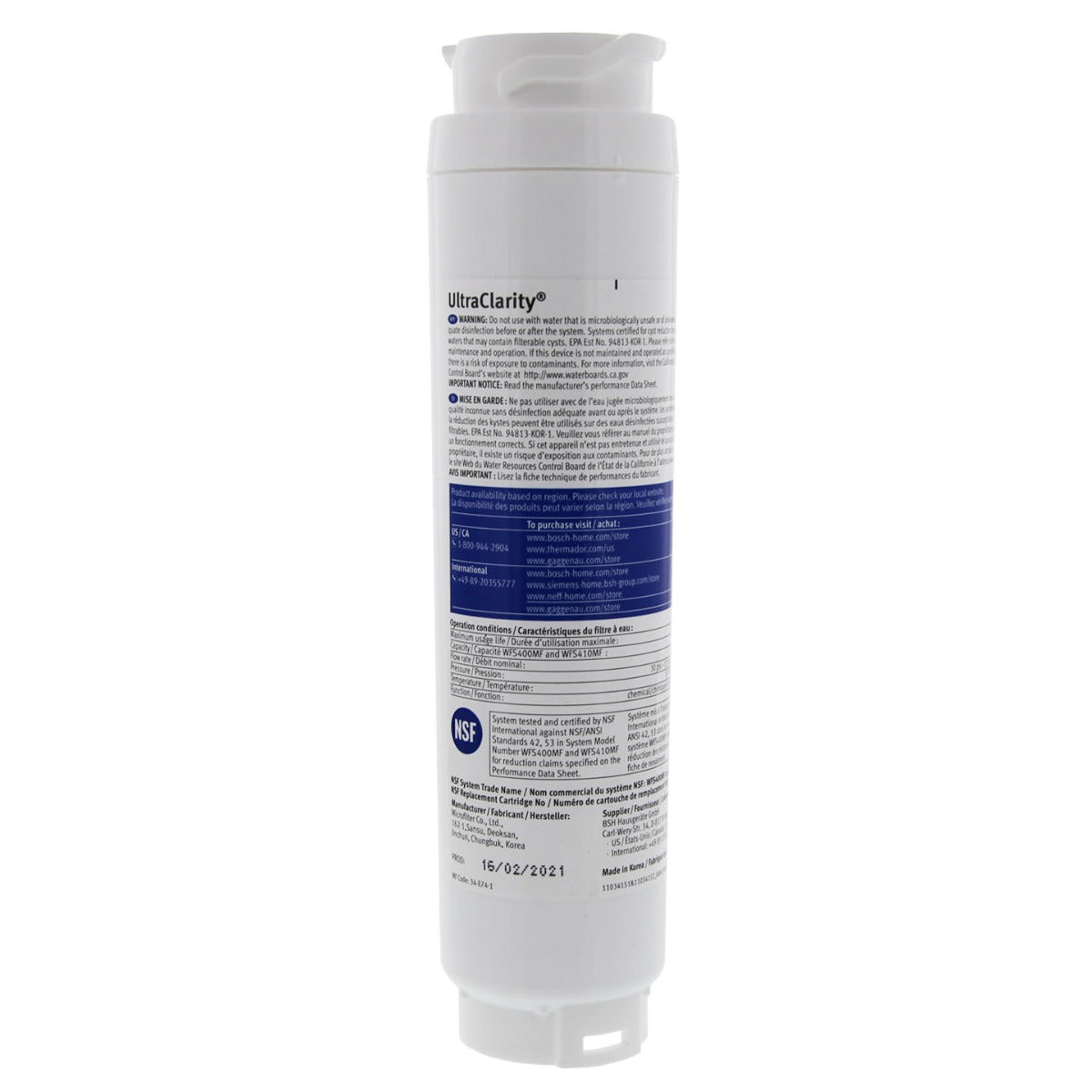

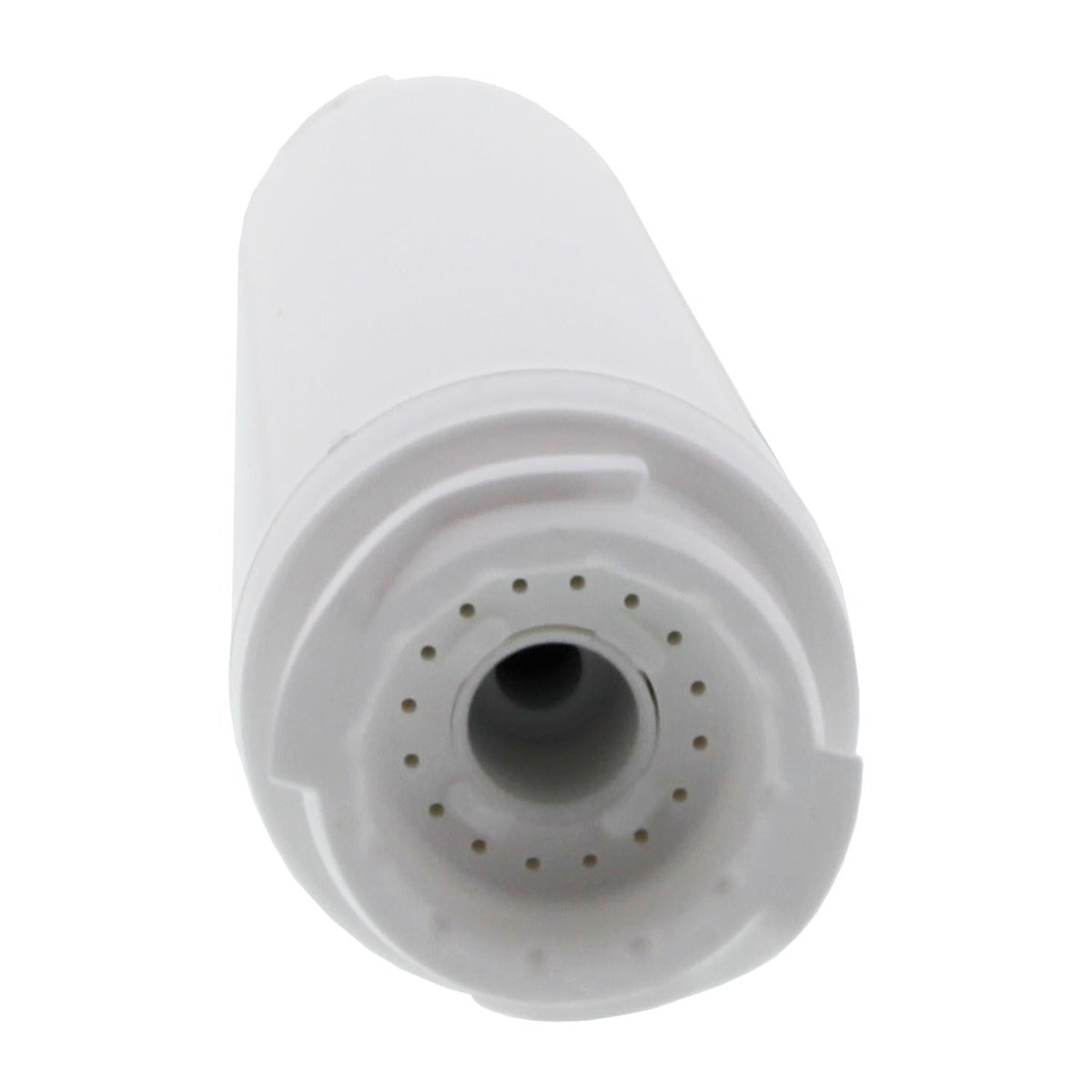

Bosch / Cuno 9000 077104 UltraClarity Refrigerator Water Filter (REPLFLTR10)

SKU
ULTRACLARITY-REPLFLTR10
$54.29 List Price $77.99 Save 30%
Availability: In Stock
Fits Bosch refrigerators with a long round filter
Choose a quantity
  • 1filter$54.29

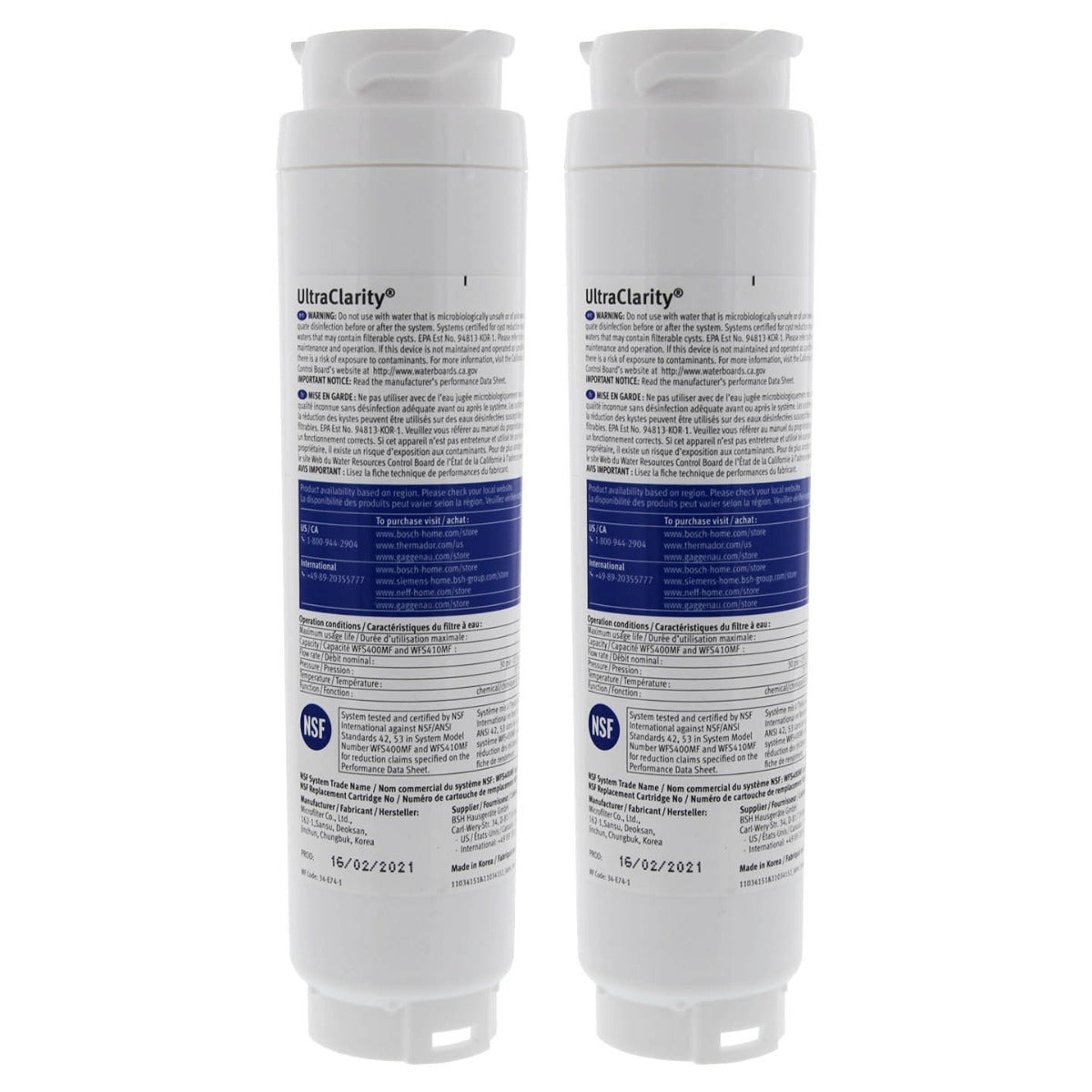

  • 2filters$52.66each

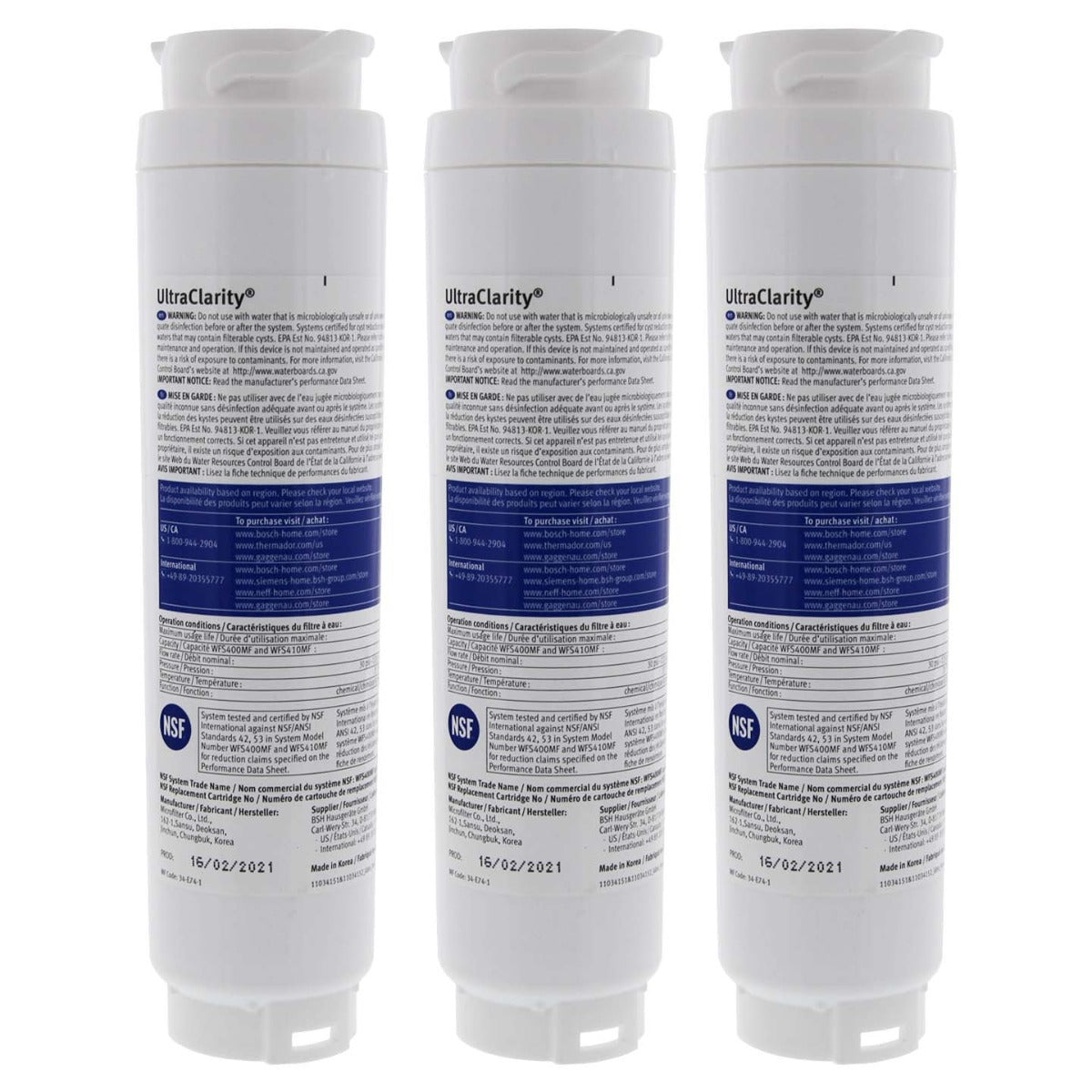

  • 3filters$51.08each
  • Made in the USA
  • Reduces up to 99% of cysts, chlorine, turbidity and particulates
› See more product details
Save $39.50 with a Tier1 Brand
Comparable Filter
View Filter Value Comparison
  • Made in the USA
  • Reduces up to 99% of cysts, chlorine, turbidity and particulates
Save $39.50 with a Tier1 Brand
Comparable Filter
View Filter Value Comparison
For up to six months after an easy installation, the Bosch / Cuno 9000 077104 UltraClarity refrigerator water filter will reduce up to 99% of contaminants that can negatively impact the flavor of your water, including chlorine, lead and particulates. Genuine OE part, proudly manufactured in the USA.
More Information
Package Qty 1
Used In Brands Bosch
Manufacturer's Id 9000 077104
UPC 825225847717
Actual Size (in) 8 1/4 inches (length) x 2 inches (outside diameter)
Actual Size (cm) 20.96 x 5.08
Outside Diameter (inches) 2
Media Carbon Block
Primary Filter Media Activated Carbon Block
Filter Life (gallons) 740
Filter Life (liters) 2,801.20
Filter Life (months) Filter's should be replaced based on usage and filter condition. Filter life is an estimation of expected performance based on typical filtration conditions.x Filter's should be replaced based on usage and filter condition. Filter life is an estimation of expected performance based on typical filtration conditions.x 6 months
Micron Rating (Nominal) The smallest size at which particles are retained by the filter. One micron is equivalent 1/1000th of a millimeter.x The smallest size at which particles are retained by the filter. One micron is equivalent 1/1000th of a millimeter.x 0⋅5
Operating Pressure (psi) 30 - 120
Operating Temperature (°F) 33 - 100
Operating Temperature (°C) 0.6 - 37.8
Flow Rate (gpm) Flow rate is the volume of water that passes through a filtration system measured in gallons per minute. A filter's flow rate indicates the maximum recommened flow for optimum filter performance. x Flow rate is the volume of water that passes through a filtration system measured in gallons per minute. A filter's flow rate indicates the maximum recommened flow for optimum filter performance. x 0.75
Flow Rate (lpm) 2.839
Country of Manufacture United States
Certifications Voluntary national standards that establish minimum requirements for the safety and performance of filtration equipment.x Voluntary national standards that establish minimum requirements for the safety and performance of filtration equipment.x NSF/ANSI Standard 42, NSF/ANSI Standard 53

Reduced Contaminants

The ULTRACLARITY-REPLFLTR10 reduces the following contaminants:

  • Chlorine Taste & Odor 97.50%
  • Cysts 99.99%
  • Particulates (Class I) 99.00%
  • Turbidity 98.80%

The ULTRACLARITY-REPLFLTR10 is comparable with the following part numbers

00740560 077095 101443 101443 0109
101443-A 1014430109 101732 0109 1017320109
176297 176345 177240 641425
644845 705475 740560 740570
777508 9000 9000 077096 9000 194412
9000 674655 9000 777508 9000077095 9000077096
9000077104 9000194412 9000674655 9000777508
EAP8736831 ECOAQUA-EFF-6025A EFF-6025A SCRNFLTR10
TIER1-RWF1110 ULTRACLARITY WD-644845 WF-299
WSB-1 WSB1 BOSCH 101443 1014430510
499850 643046 667256 740568
740572 9000 077 096 9000 077104 9000 193 914
90000194412 9000225170 AP3962558 B20CS50SN
B20CS80SN BORPLFTR10 BT-644845 BOSCH BT644845
D405434 D570104 REPLFLTR10 0060218743
0060820860 0060822300 10169 101698B
101699 101699B 3038882 9557031
RF-2800-13 RF-2800-15 RF280013 RF280015
ULTRACLARITY 9000 077 104 7134220 KWF1000 BT644845
RWF-1110 RWF1110 SGF-BO90 SUP644845
WF299 WF279 EFF-6025 EFF6025A
EFF6025 SGFBO90 60218743 602187-43
RB-B1 "ULTRACLARITY-REPLFLTR10 USWF_4110_2_PACK TIER1_RWF1110_2_PACK
TIER1_RWF1110_3_PACK TIER1_RWF1110_4_PACK TIER1_RWF1110_6_PACK TIER1-RWF1110-2-PK
TIER1-RWF1110-3-PK TIER1-RWF1110-4-PK WSB1

The ULTRACLARITY-REPLFLTR10 fits the following model numbers

B20CS5 B20CS8 B20CSC81SNS B20CS81SNW
B20CS81SNB B20CS51SNS B20CS51SNI B20CS51SNSB
B20CS50SN B20CS80SN B20CSS0SN B20CS30SNS
B20CS50SNB-01 B20CS50SNB 01 B20CS50SNB01 K3990
KA58 KAN58 Evolution 500 Series Evolution 800 Series
KAN58A40AU KAN58A70AU/08 Evolution 500 500
Evolution 800 800 B20CS80SN EVOLUTION 500 SERIES EVOLUTION 800 SERIES
B22CS30SNS B22CS30SNS-01 B22CS80SNS B26FT70SNS

Instructions

  1. Twist the old filter a half-turn counterclockwise
  2. Pull the filter straight out (don't worry, the water will shut off automatically)
  3. Remove the reusable knob/cap from the end of the old filter
  4. Discard the old filter
  5. Snap the knob/cap onto the end of the new filter
  6. Push the new filter into the fridge with the knob in the horizontal position until it stops
  7. Twist the filter a half-turn clockwise
  8. Reset your 'change filter' light (if your fridge has one)

Reset Instructions

  1. Simultaneously press and hold the SUPER and ICE buttons for 3 seconds
